Product Code
Product description
Product Picture
Info
Product Position
EAVES FLOW TO VENTILATION UNIT ETV001
locates in the eaves beam between the glazing bars allowing the glass to seat flat

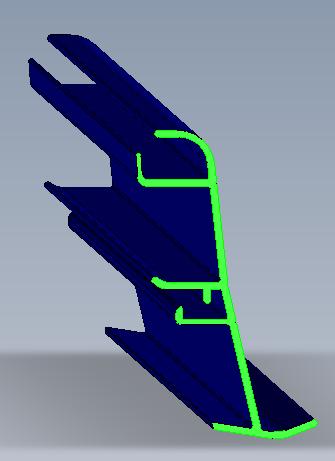

ALUMINIUM EAVES BEAM
runs the front length or the roof and attaches to the firring frame end closure
EAVES INNER LOWER TRIM
locates on the inner face, lower lip of the eaves beam
EXTERNAL THERMAL CLADDING
locates/clips to the Eaves beam as an external cover
ELEVATION PLUS HIPPED WING POLY CORNER MOULDING
used to join the front and side eaves beam together (corner mould)
ELEVATION PLUS HIPPED WING EAVES TOP CAP
locates in to the Elevation plus hipped wing poly support as a top cap for the end of the glazing section (glazing end profile)
ELEVATION PLUS HIPPED WING PLOY SUPPORT
locates/clips onto the top of the side eaves beam to enable the polycarbonate to rest on
ELEVATION PLUS EAVES COVER TRIM
locates where the wall eaves hits the ridge body (on the top internal hip end corner) as a trim (like the 'v' cover used for transoms)
GLAZING BAR 'V' COVER TRIM
Connects into the 'V' cover backplate located against the eaves beam as a trim around the glazing bar (where it hits the eaves beam)
V' COVER TRIM BACK PLATE
Locates against the eaves beam as a backplate for the glazing bar 'V' cover trim and to join the eaves internal fascia
ELEVATION PLUS STARTER TO EAVES COVER TRIM BACK PLATE
Locates where the starter bar/ abutment bar hits the eaves beam fascia and is the back plate for the half 'V' cover (These are handed)
ELEVATION PLUS STARTER BAR TO EAVES 'V' COVER TRIM
Locates where the starter bar/ abutment bar hits the eaves beam fascia and is half a 'V' cover (These are handed)
ALUMINIUM EAVES BEAM TO EAVES BEAM SLEEVE JOINTER
Used to join eaves beam aluminium section over a curtain length
FIRRING MAIN BODY
Locates on top of the firring frame connector and capped off with the firring cover trim
FIRRING FRAME CONNECTOR
Connects the eaves beam section to the house wall (in effect a plastic eaves beam) and has the firring sections on top
FIRRING POLY SUPPORT
Sits on top of the firring cover trim
FIRRING COVER TRIM
locates between firring main body and the firring poly support trim
ALUMINIUM REINFORCEMENT
Aluminium boxsection that slides inside the firring frame connector for structural support
STEEL REINFORCEMENT
Steel section that slides inside the aluminium reinforcement beam for extra structural support
INTERNAL FASCIA CLADDING
click 'onto' the eaves beam as a internal fascia cover trim
FIXINGS
Screws used to secure the eaves beam to the hipped wing poly corner moulding
FIRRING FRAME CONNECTOR END CLOSER
Locates at the front end where the firing and the eaves meet. This is a cover end cap
