Product Code
Product description
Product Picture
Info
Product Position
MAIN RIDGE CARRAGE
sits on the main and half ridge bodies to hold the ridge top cap. Not used on basic wall plate PWLA or the ventilated
HALF RIDGE / LANTERN BAFFLE SUPPORT WING
connects to the half ridge main body to create a MK5 half ridge
HALF RIDGETOP CAPPING
top capping for half ridge, connects to half ridge main body
HALF RIDGE END CAP (LEFT AND RIGHT)
to be positioned on the end of the MK5 half ridge to cover any visible aluminium and ensure water tightness
MK5 HALF RIDGE MAIN BODY
To be coupled with the KHB baffle support wing to make full unit
HALF RIDGE / LANTERN UNDER CLADDING
placed as cladding under the Mk5 half ridge and lantern main ridge
RAIN BAFFLE BACK SECTION
this is placed in the back section of the full ridge body. Used with the rain baffle
RAIN BAFFLE
This is placed on the top wing of the main ridge body for weather purposes

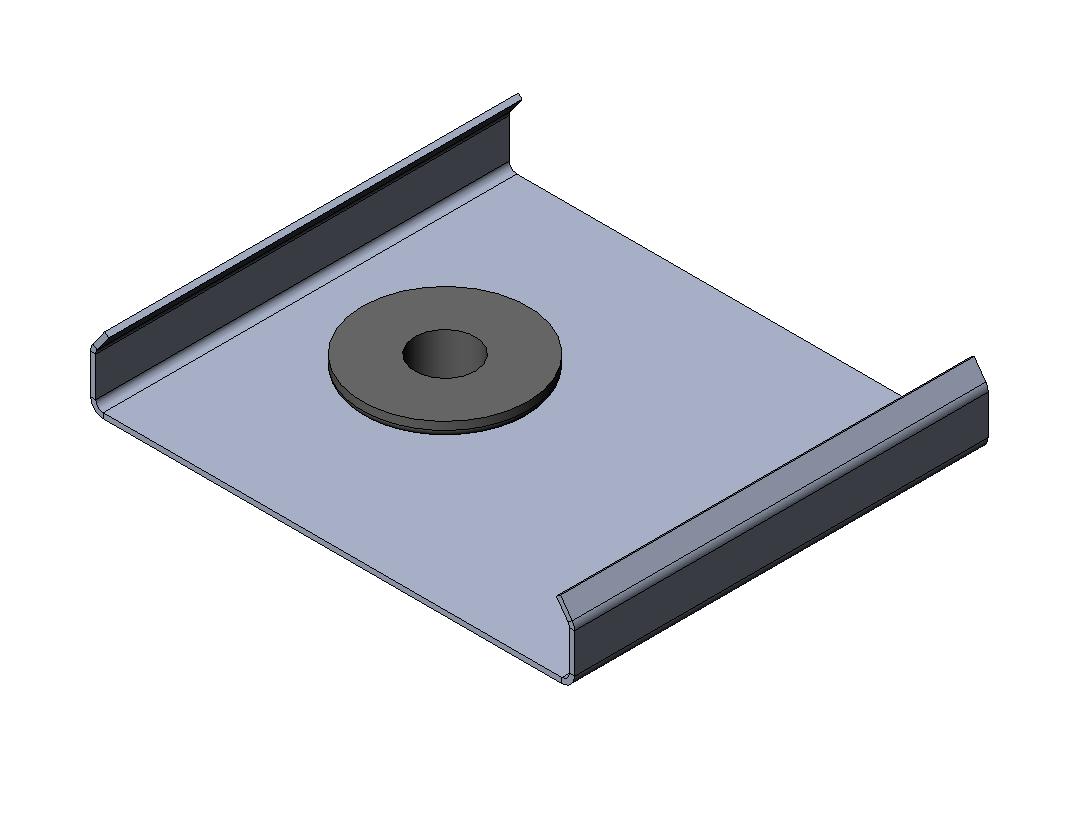

RIDGE 'T' BOLT AND FIXING PLATE
this is pushed up through the hole in the centre of the ridge body allowing the ridge capping to be secured
ROSE FIXING PLATE ASSEMBLY
fixed under the speedlock hub and used to secure the internal cladding with the threaded fixing rose
NYLON WASHER NUT
Pushes into the rose fixing plate for which the threaded rose locates
OPENING BUTTON
this is placed in the ventilation holes on the Mk5 ridge under cladding slots
HALF RIDGE FLY MESH
Used inside the internal full ridge cladding to prevent insects entering ridge.
PLASTIC SNAP RIVET - RIDGE CAP
used to connect ridge top caps and radius end caps along with silicone
