Product Code
Product description
Product Picture
Info
Product Position

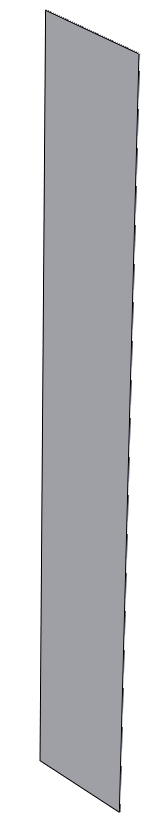

LRP_/3
CLADDING INFILL (265MM WIDE)

Large 90 degree corner column only

This flat panel sits between the column cladding corners on top of the cladding clips. See the install guide pages 43 - 45

LRP_/4
CLADDING INFILL (242MM WIDE)

Large inline and abutment column only

This flat panel sits between the column cladding corners on top of the cladding clips. See the install guide pages 43 - 45

LRP_/6
CLADDING INFILL (174MM WIDE)

Small inline, abutment and 90 degree columns

This flat panel sits between the column cladding corners on top of the cladding clips. See the install guide pages 43 - 45

LRP_/7
LARGE COLUMN CLADDING

This is located on the frame side of the columns and connects to the column clip. See the install guide pages 43 - 45
LRP_/8
SMALL COLUMN CLADDING

This is located on the frame side of the columns and connects to the column clip. See the install guide pages 43 - 45

LRP_/9
LARGE 90 DEGREE COLUMN CLADDING

Secured to the corner of the LARGE corner column - See the install guide pages 43 - 45
LRP_/10
SMALL 90 DEGREE COLUMN CLADDING

Secured to the corner of the SMALL corner column - See the install guide pages 43 - 45
LRP_/11
LARGE COLUMN CLADDING CLIP

Located on either side of ALL the LARGE columns which allows fitment of the external powder coated claddings. See the install guide pages 43 - 45
LRP_/12
SMALL COLUMN CLADDING CLIP

Located on either side of ALL the SMALL columns which allows fitment of the external powder coated claddings. See the install guide pages 43 - 45
LRP_/13
ALI CILL THERMALLY BROKEN

This is designed to fit between columns ONLY. Used in conjunction with our dentil add on. See install guide pages 27 - 28

LRP_/26
BRICK SET OUT SPACER
>>

This will be placed on all full height columns that connect to a dwarf wall. This gives the 10mm required for the cladding clips. See install guide pages 27 -28

LRP_/27
LARGE COLUMN ABUTMENT CLADDING

This is the LARGE abutment external cladding that clips into the LRP_/29 abutment bracket. See install guide page 44
LRP_/28
SMALL COLUMN ABUTMENT CLADDING
>>

This is the SMALL abutment external cladding that clips into the LRP_/29 abutment bracket. See install guide page 44
LRP_/29
COLUMN ABUTMENT BRACKET

This is used to secure the abutment columns to the host wall. See install guide page 19
LFF
BOTTOM PROTECTOR (lead free flashing)
>>

Comments to follow...

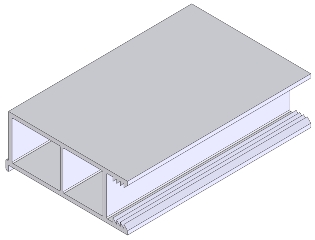

DTA
DENTIL ADD ON
>>

Comments to follow...

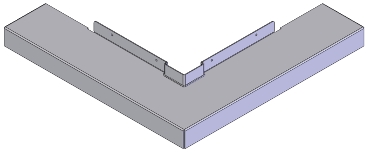

LRP008
COLUMN CILL ON PLINTH / BRICKWORK SMALL
>>

Comments to follow...

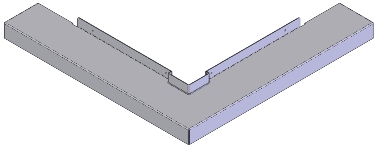

LRP009
COLUMN CILL ON PLINTH / BRICKWORK LARGE
>>

Comments to follow...

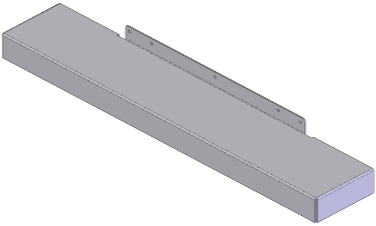

LRP010
COLUMN CILL ON PLINTH / BRICKWORK INTEMERDIATE
>>

Comments to follow...

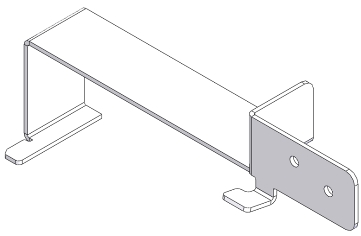

LRP011L
COLUMN CILL END PLATE LH
>>

Comments to follow...

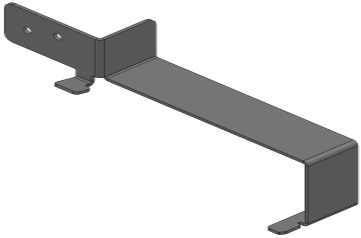

LRP011R
COLUMN CILL END PLATE RH
>>

Comments to follow...

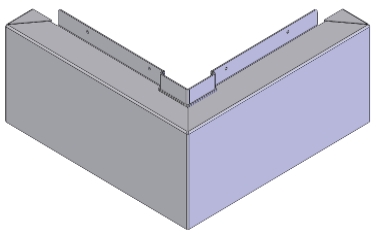

LRP012
COLUMN CILL NO PLINTH - BRICKWORK SMALL
>>

Comments to follow...

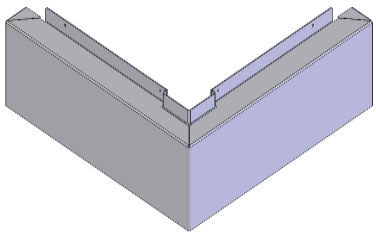

LRP013
COLUMN CILL NO PLINTH - BRICKWORK LARGE
>>

Comments to follow...

LRP014
COLUMN CILL NO PLINTH - BRICKWORK INTERMEDIATE
>>

Comments to follow...

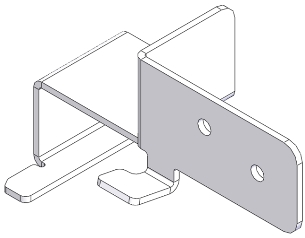

LRP016L
COLUMN CILL END PLATE NO PLINTH - BRICKWORK
>>

Comments to follow...

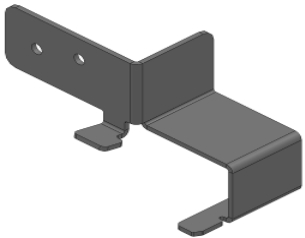

LRP016R
COLUMN CILL END PLATE NO PLINTH - BRICKWORK
>>

Comments to follow...

LRP018L
CILL END CAP LH
>>

Comments to follow...

LRP018R
CILL END CAP RH
>>

Comments to follow...

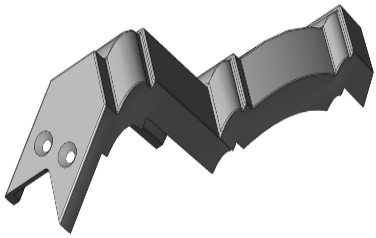

LRP021
CORNICE CORNER CUT DOWN - LARGE CORNER CLADDING
>>

Comments to follow...

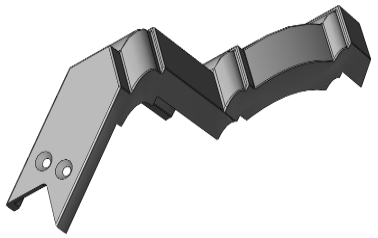

LRP022
CORNICE CORNER CUT DOWN - SMALL CORNER CLADDING
>>

Comments to follow...

CRN009
3.5 x 9.5 SELF DRILL SCREW
>>

Comments to follow...

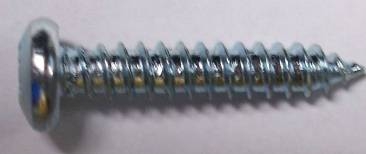

EFSA021
4.8 x 25 LG POZI PAN HD S-TAP SCREW
>>

Comments to follow...

LRP040
PLINTH FIXING KIT
>>

Comments to follow...
