Product Code

Product description

Product Picture

Info

Product Position

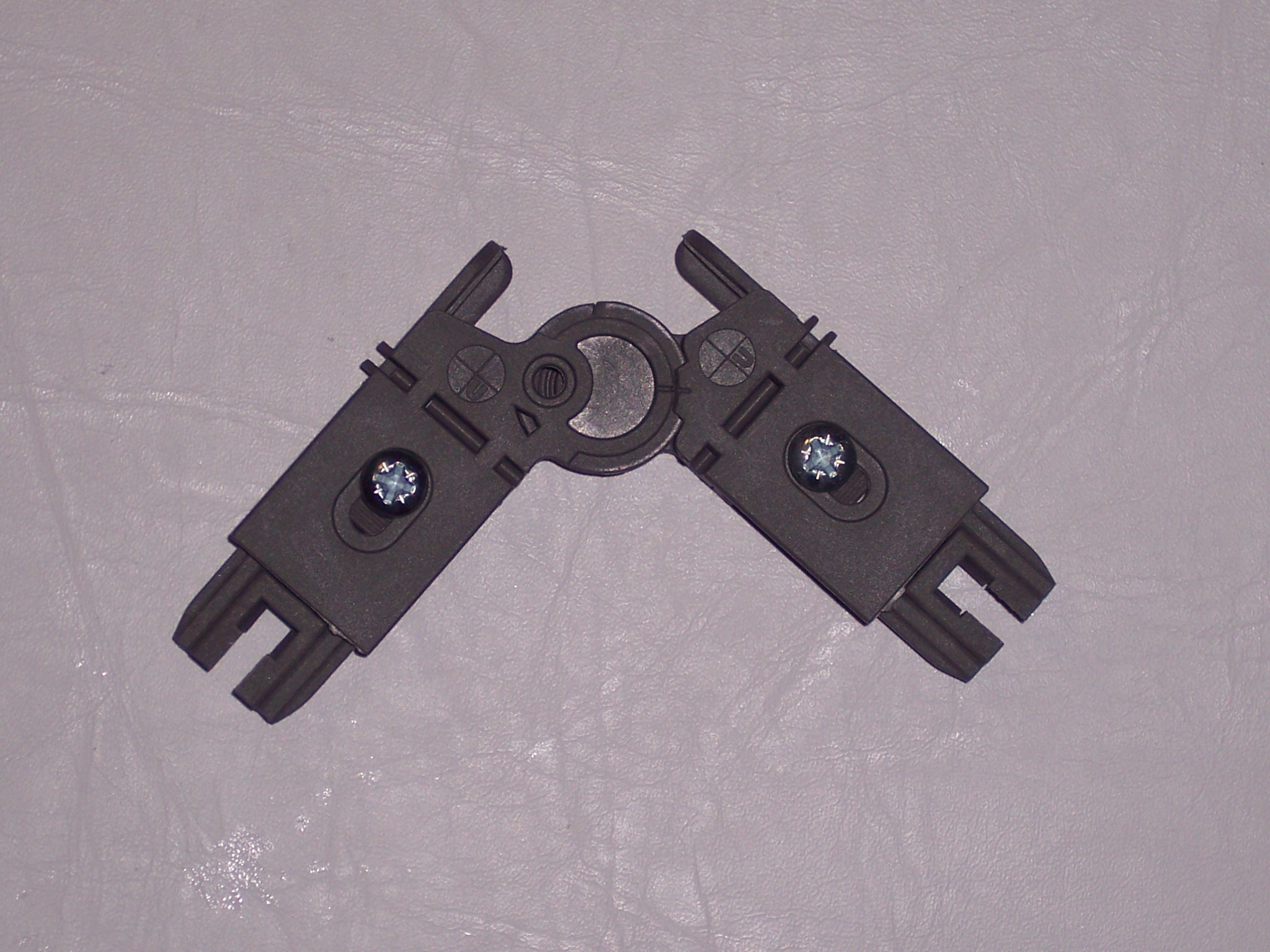

CORNER MOULDING ASSEMBLY

These are the corner cleats for the shade panel.

ALUMINIUM RAIL

this is the side frames for the shades panels

TENSION ROD

These are positioned inside the plastic bottom rails to add tension

INTERMEDIATE ROD POCKET

this is used on wide shade panels to allow tension to be asserted in the centre. This comes assembled Not sold separately

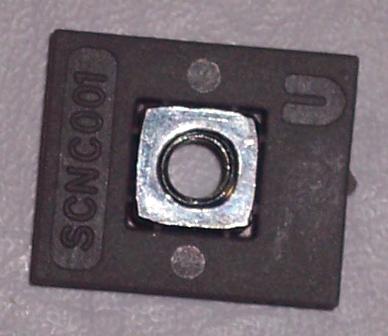

M4 SQUARE NUT CARRIER

this is positioned on the SCRP001 using the SCPP060 screw This comes assembled Not sold separately

M2.9 X 6.5mm POZI PAN HEAD SCREW

this is the locking screw for the corner cleats in the panels This comes assembled Not sold separately

M4 x 5mm POZI PAN HEAD SCREW

used to secure the two sections of the corner cleat together. This comes assembled Not sold separately

M4 x 6mm POZI PAN HEAD SCREW

used to secure the square nut carrier to the intermediate rod This comes assembled Not sold separately

M4 X 30mm HEX HEAD BOLT

Threaded bolt used in the assembly of the intermediate tensioning rod This comes assembled Not sold separately
